Set Up Image Preview of the Product

From the Item Form of each of your Inventory items, you can manually set up product images that will be displayed in your webstore.
  1. From the eCommerce Module > Setup > Application Configuration.

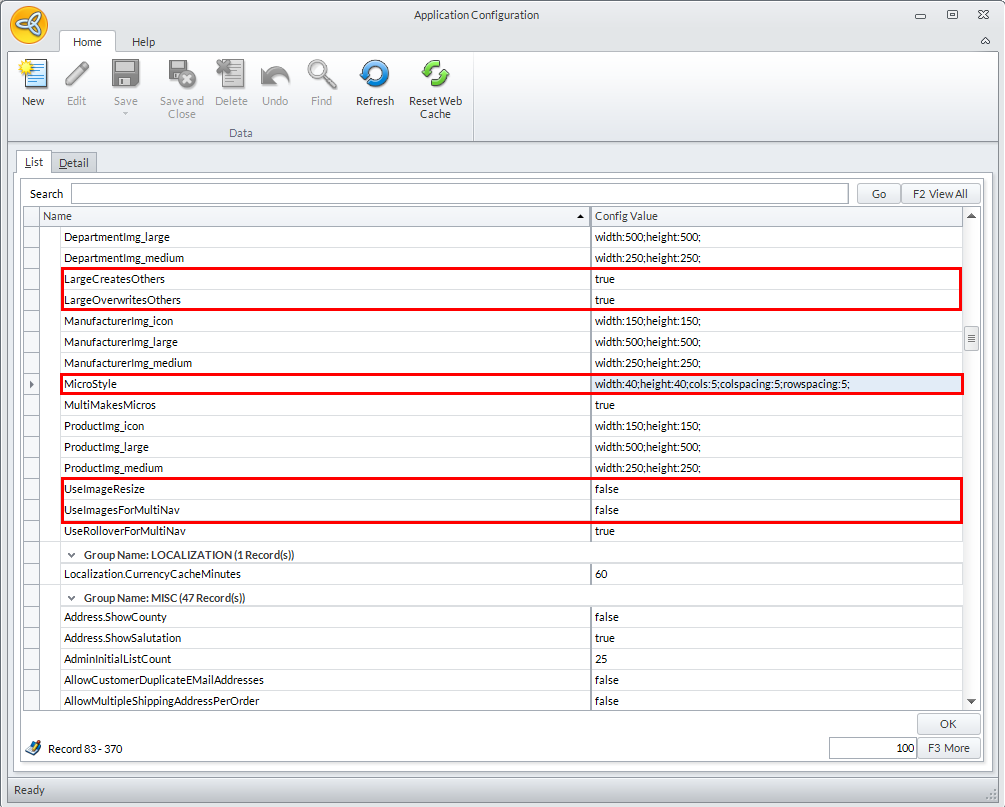

  2. The AppConfig form will be displayed. Select the following AppConfig parameters - you will need to configure these to make image preview work better in your webstore:

    Image Preview AppConfig Parameters

    Name

    Config Value

    		 Description
    UseImageResize

    TRUE

    If set to true, will enable the system to automatically create the Medium, Icon and Micro sizes of the image. Images are saved in the web/images/product folder.

    If false, and Large image is loaded, a message "Do you want to use the same image for all sizes" will be prompted. Select the preferred option to proceed.

    Moreover, the LargeCreatesOthers and LargeOverwritesOthers will be discarded.
    LargeCreatesOthers

    TRUE

    This will enable the system to create the Medium and Icon sizes of the image. This will only work if the UseImageResize is set to True. Images are saved in the web/images/product folder.
    LargeOverwritesOthers

    TRUE

    This will enable the system to automatically overwrite the Medium and Icon sizes when a new Large image is loaded. Images are saved in the web/images/product folder.

    See Also: Overwrite Item Image
    UseImagesForMultiNav

    TRUE

    Micro images will be used instead of the number icons when multiple images exist in the Images section under Item > Web Option > Images.

    See Also: Set Up Multiple Images
    MicroStyle

    width:40;
    height:40;
    cols:5;
    colspacing:5;
    rowspacing:5;

    This will set the number of images to appear in each row and column and row spacing between each image.

    Click Image to Enlarge

  3. After setting up the AppConfig parameters, you may now load the item image/s. From the eCommerce Module > Item > Find Item.

  4. The Item list will be displayed. Select the item you want to modify its web options by double-clicking the item on the list. The Item Form will be displayed.

    Click Image to Enlarge

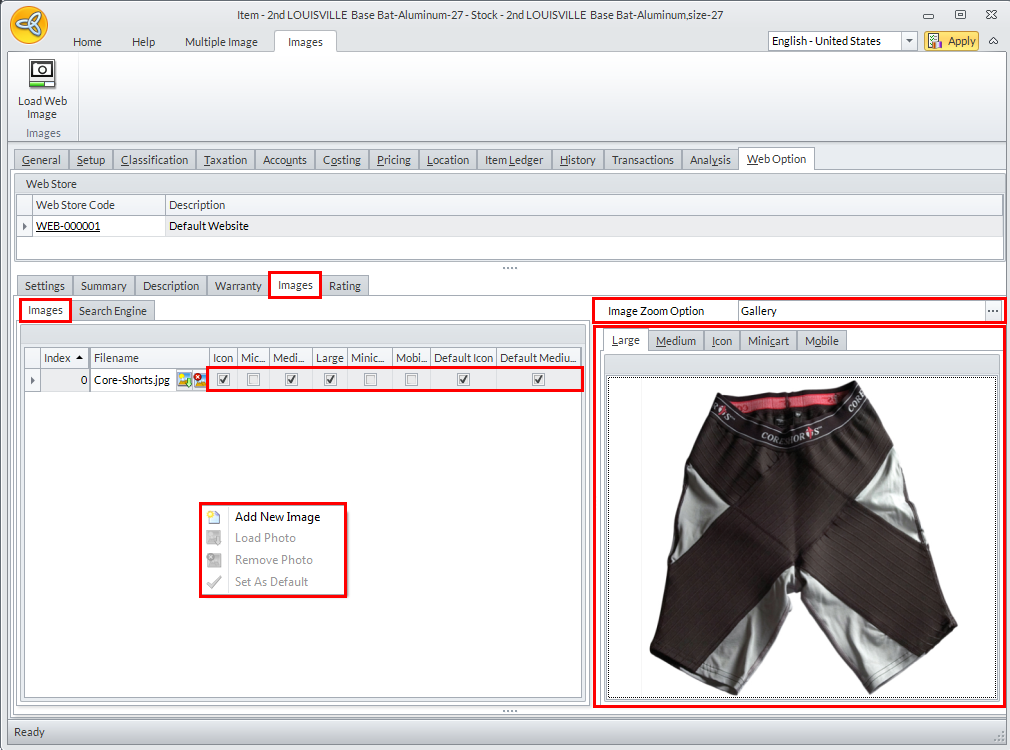

  5. Access the Web Option tab and from it, the Images sub-tab.

    Click Image to Enlarge

    Right-click on the table area and select Add New Image. Then locate the image you want to load from the file explorer that will be displayed.

    You may also choose Image Zoom Option and view different sizes from Large, Medium, Icon, Minicart and Mobile.


  6. Once done, Save and Close the Item Form to apply your changes.
