Network Merchants

Below are the steps in setting up Network Merchants Payment Gateway.

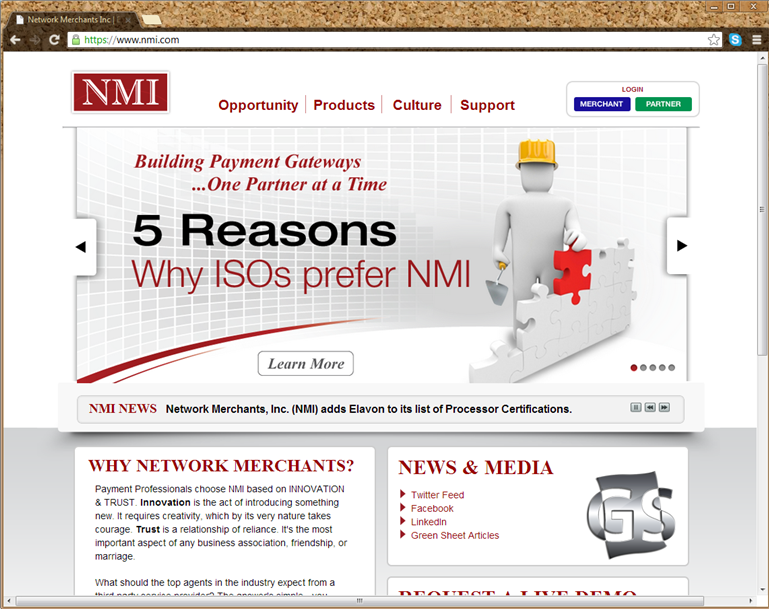

Apply for a Network Merchants Payment Gateway Account

To set up an account, you need to contact Network Merchants.

Click Image to Enlarge

Set Up Network Merchants Payment Gateway in Connected Business

1. Open the Connected Business application.


2. Go to Banking > Setup and select the Credit Card Gateway option. The list of supported credit card gateways will be displayed.

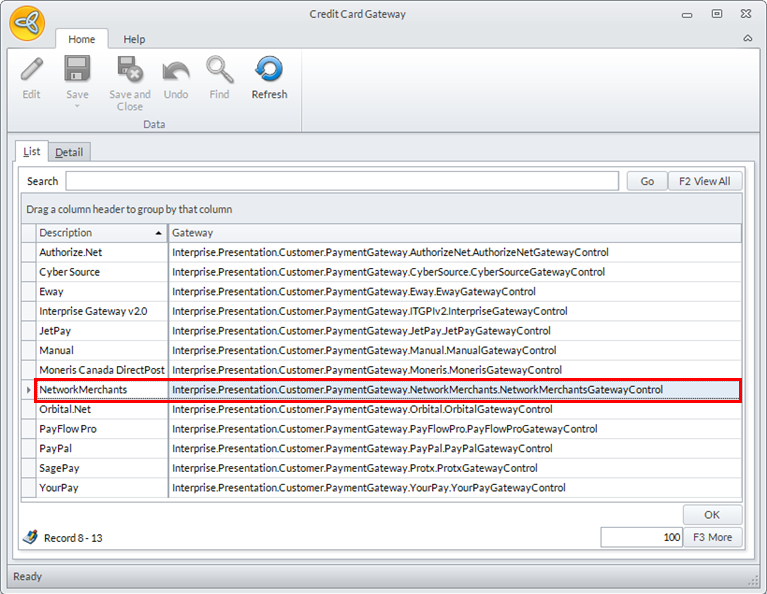

3. Select Network Merchants from the list and the gateway details will be displayed.


   Click Image to Enlarge



   Click Image to Enlarge

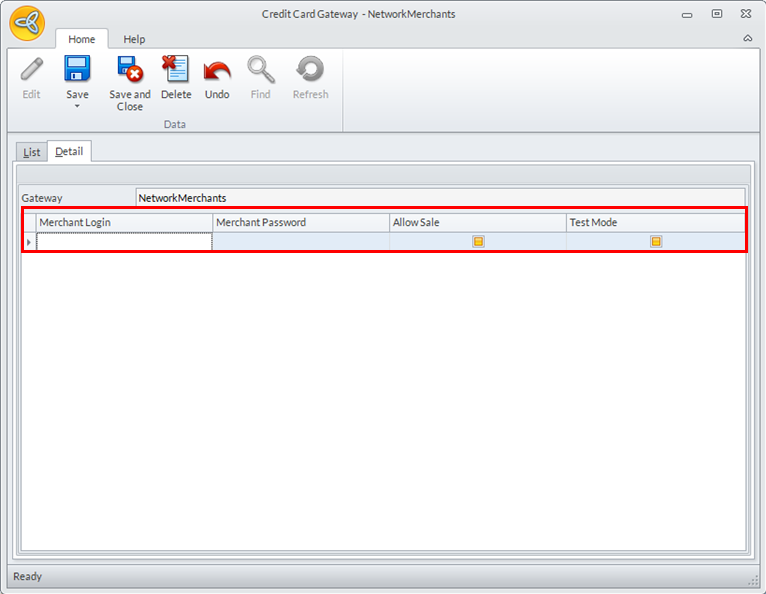

   Enter the details for the following fields:

   • Merchant Login:
   • Merchants Password:
   • Allow Sale: Check / Uncheck
   • Test Mode: Check / Uncheck

   Click Save and Close to apply changes.



   Unless you plan to go live with your system, DO NOT UNCHECK THE TEST MODE OPTION IF THE EBUSINESS SYSTEM IS STILL IN DEVELOPMENT STAGE, otherwise, you might incur charges for any transactions made using the gateway.

4. After setting the configurations for Network Merchants, set it as the payment gateway for the website. Go to eCommerce module > Webstore and the list of existing webstores will be displayed.


5. Select the webstore where you want to use the gateway and the webstore details will be displayed.


6. In the Merchant Login field, select Network Merchants from the dropdown list.


   Click Image to Enlarge

7. Click Save and Close to save your settings.


   The gateway setup only works with the website into which it was defined. You need to set up the gateway for every website you want to use it for.
