CyberSource

Below are the steps in setting up the CyberSource Payment Gateway.

Apply for a CyberSource Payment Gateway Account

Go to http://www.cybersource.com/ and sign up for a test account. You will receive an email from CyberSource confirming your registration and the login credentials for your account.

Click Image to Enlarge

Generate the SOAP Key

To generate the SOAP Key,

1. Login to the CyberSource Test Business Center using the login credentials provided in the email confirmation from CyberSource.


2. Upon logging in, go to Account Management > Transaction Security Keys and select Security Keys for the SOAP Toolkit API option.


   Click Image to Enlarge



3. Click the Generate Key button to generate the SOAP Key. A textbox will appear at the bottom of the page with a series of characters which is the SOAP Certificate. You can either copy and paste the certificate on a notepad or just click the Download button and save the certificate in a safe location on your computer as a text file.


   Click Image to Enlarge



   Remember to save or download a copy of the certificate to a safe lcoation as this will be deleted when you leave the page.




Set Up CyberSource Payment Gateway in Connected Business

1. Open the Connected Business application.

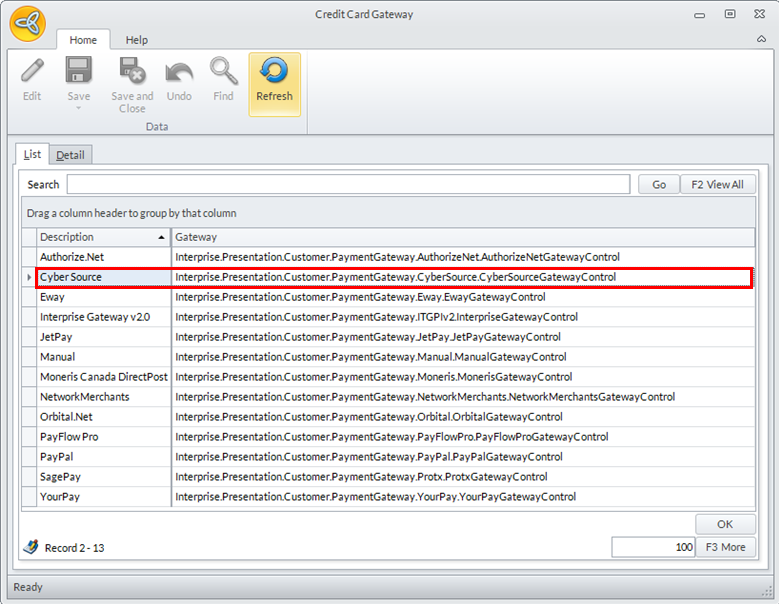

2. Go to Banking > Setup and select the Credit Card Gateway option. The list of supported credit card gateways will be displayed.


3. Select CyberSource from the list and the gateway details will be displayed.


   Click Image to Enlarge





   Click Image to Enlarge

   Enter the details for the following fields:

   • Merchant Login:
   • SOAP Certificate:
   • Allow Sale: Check / Uncheck
   • Test Mode: Check / Uncheck


4. After setting the configurations for CyberSource, set it as the payment gateway for the website. Go to eCommerce module > Webstore and the list of existing webstores will be displayed.


5. Select the webstore where you want to use the gateway and the webstore details will be displayed.

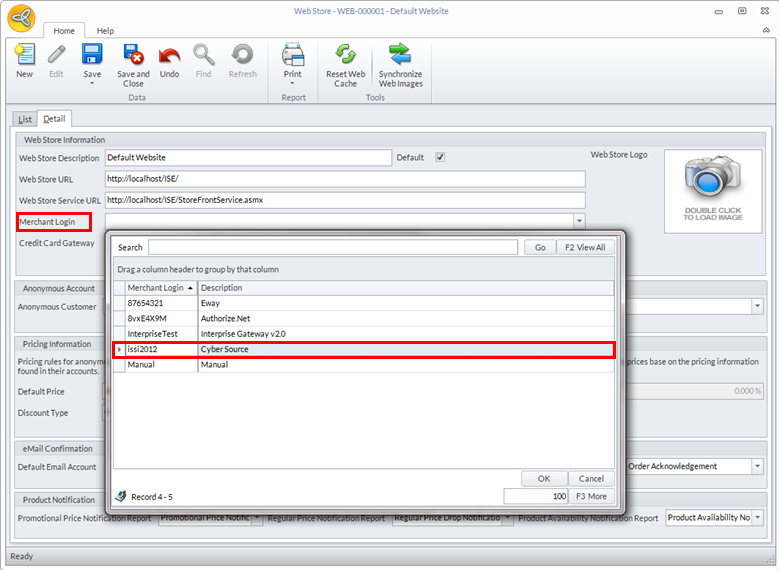

6. In the Merchant Login field, select CyberSource from the dropdown list.


   Click Image to Enlarge



7. Click Save and Close to save your settings.


   The gateway setup only works in the website into which it was defined. You need to set up the gateway for every website you want to use it for.
