Configure Job Service Manager

The Connected Business Job Service Manager allows you to run the job plans created in Connected Business. This enables you to do the following:

• Install / Uninstall job service.
• Disable / Enable the job service.

Set Up the Connected Business Job Service Manager

1. Go to Start menu > Connected Business 13.2 >Tools > Connected Job Manager 13.2. The Connected Business Job Service Wizard will be displayed. Click Next to proceed.


   Alternately, you can also go to the installation folder of Connected Business and locate the executable file Interprise.Presentation.JobManager.exe to run the Connected Business Job Service Wizard.



   Click Image to Enlarge



2. Click F2 to set up the configuration for the database connection.



   If you have not set up a configuration for your company, refer to Configuration / Signing-In.




   Click Image to Enlarge



   1. On the Database Connection Configuration window, enter the details for the required fields to access your company database and save your configuration.
   2. Click on Verify Credentials button to validate the database connection and click Next to proceed.
3. On the General page, define the settings for the job service manager..


   Click Image to Enlarge



   Field	Description
   Service Name	Name of the jobservice. By default, the service name is ConnectedBusinessJobServiceManager_13_2.
   Display Name	The name of the job service displayed.
   Description	Describes how the job service works.
   Start Type	Select the type on how the service will be started. Automatic - service will be run automatically once the computer is turned on. Disabled - turns the service off. Manual - allows the service to be manually run by user.
   Idle Time	The time set for the service to be idle before it responds to the data gathered.
   Max Thread	Maximum number of concurrent threads that can be started to execute a job plan.

4. Click Install to start installing the job service. Once successfully installed, the job service will automatically start.

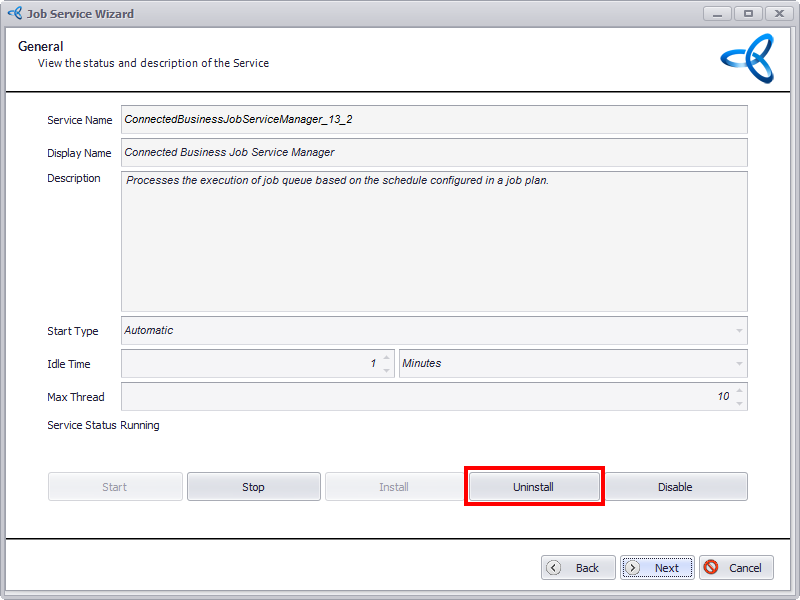

5. If you want to edit the service preferences, click the Uninstall button. After making the changes, click on the Install button to start installing the service again.


   Click Image to Enlarge



6. Click Next to continue then click Finish to close the Connected Business Job Service Wizard.

To check if the Job Service is running, go to Start > Settings > Control Panel > Administrative Tools > Services.
